7 Marla House Design in Lahore: Complete House Plans, Layouts & Construction Cost

A 7 Marla plot gives you good space for a family house in Lahore. The exact size of 7 Marla can be different in some housing societies, so it’s important to check the actual plot dimensions before starting the house plan.

A common example in Lahore is a 30 by 52.5 feet plot. This gives around 1,575 square feet of total plot area. Other 7 Marla plots may have different dimensions, so the house design should be made according to the actual size and shape of your plot.

The full plot area cannot always be used for construction. The building plan must leave the required open spaces and setbacks. The road width, plot position, society rules and parking needs can also affect the final building area.

For a double story house, the available space can be divided between the ground floor and first floor. This allows you to use the plot more efficiently while keeping enough room for movement and open areas.

7 Marla Plot Details

Detail	Typical Information
Plot Size	7 Marla
Common Plot Area	Around 1,575 sq ft
Example Dimensions	30 × 52.5 ft
Plot Shape	Usually rectangular
Main Front	Road facing side
House Type	Single story or double story
Roof	Terrace and mumty where allowed

The final covered area should be worked out after checking the plot dimensions and the building rules of the housing society. A 7 Marla house design in DHA Lahore may not have the same usable layout as a 7 Marla house in Bahria Town Lahore or another area.

At the planning stage, we first look at the actual plot size, front and back sides, road position and required open spaces. This helps us create a house plan that fits the land instead of forcing a standard plan onto every 7 Marla plot.

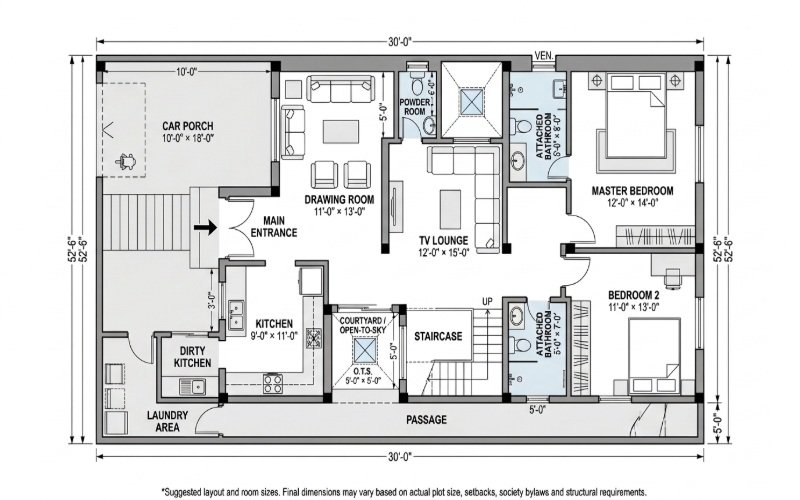

7 Marla Ground Floor House Plan

A well planned 7 Marla ground floor can comfortably fit two bedrooms along with the main living areas of the house. The layout below is planned for a family that wants good room sizes, a proper car porch and enough space for daily movement.

The front portion starts with the car porch and main entrance. The drawing room can sit near the entrance so guests can use it without moving through the private part of the house. A powder room near the entrance also makes the ground floor more practical for visitors.

Further inside, the TV lounge works as the main family sitting area. The kitchen can open towards the lounge for easy access during family meals. A separate dirty kitchen can be added if the family does regular cooking and wants to keep the main kitchen clean.

Two bedrooms can be placed on the ground floor. The master bedroom should have a little more space and an attached bathroom. The second bedroom can also have its own bathroom. A small open to sky area or light space can help bring fresh air and daylight into the inner part of the house.

The staircase should be placed where it can connect the first floor without taking too much space from the lounge or bedrooms. A laundry area can be kept close to the kitchen or a service area so that daily work stays easy to manage.

Ground Floor Complete Layout

A practical layout can include:

1. Car porch at the front

2. Main entrance

3. Drawing room near the entrance

4. Powder room for guests

5. Family TV lounge

6. Main kitchen

7. Separate dirty kitchen

8. Master bedroom with attached bathroom

9. Second bedroom with attached bathroom

10. Staircase for the first floor

11. Laundry area

12. Small open to sky or light area

The exact position of each room should be adjusted after checking the plot shape, road side, required setbacks and the rules of the housing society. LDA regulations also set open space requirements for residential plots, so a standard drawing shouldn’t be copied directly onto every 7 Marla plot.

Suggested Ground Floor Room Sizes

Area	Suggested Size
Car Porch	10 × 18 ft
Drawing Room	11 × 13 ft
TV Lounge	12 × 15 ft
Master Bedroom	12 × 14 ft
Second Bedroom	11 × 13 ft
Main Kitchen	9 × 11 ft
Dirty Kitchen	6 × 8 ft
Attached Bathroom	5 × 8 ft
Powder Room	4 × 6 ft
Laundry Area	5 × 7 ft
Staircase	According to final plan
Open to Sky Area	According to final plan

These are suggested planning sizes, not fixed construction sizes. The final measurements can change because walls, columns, stairs, setbacks, ventilation areas and the structural design all need to work together.

For a 30 × 52.5 ft 7 Marla plot, careful space planning is especially important. A few feet gained or lost in one area can change the size of the lounge, bedrooms or porch. That is why we first fit the main spaces on the actual plot and then work out the room sizes instead of using one fixed map for every 7 Marla house.

7 Marla First Floor House Plan

A 7 Marla first floor can give the family more private space without making the house feel crowded. A good layout can include three bedrooms, a family lounge, attached bathrooms and an open terrace.

The stairs should open into a small lobby instead of directly into a bedroom. From this lobby, each room can be reached easily. The master bedroom can be placed in the quieter part of the floor, while the other bedrooms can be planned for children or family members.

A family lounge in the centre gives everyone a separate place to sit upstairs. It can also connect the bedrooms and terrace, so the upper floor feels open and easy to use.

First Floor Layout

The suggested first floor can include:

1. Master bedroom with attached bathroom

2. Bedroom 3 with attached bathroom

3. Bedroom 4 with attached bathroom

4. Family lounge

5. Small kitchen or kitchenette

6. Stair lobby

7. Laundry area

8. Front terrace

9. Open sitting area

The kitchen or kitchenette is optional. It can be useful when the first floor is used by older children, guests or a family member who wants more privacy. If you don’t need an upstairs kitchen, this space can instead be used for storage, laundry or a larger family lounge.

The front terrace should have enough open space for seating and fresh air. It can also become an important part of the front elevation, especially in a modern 7 Marla house design in Lahore.

Suggested First Floor Room Sizes

Area	Suggested Size
Master Bedroom	12 × 14 ft
Master Bathroom	5 × 8 ft
Bedroom 3	11 × 13 ft
Bedroom 4	11 × 12 ft
Attached Bathrooms	5 × 8 ft
Family Lounge	12 × 14 ft
Kitchenette	7 × 9 ft
Stair Lobby	6 × 8 ft
Laundry Area	5 × 7 ft
Front Terrace	According to final plan
Open Sitting Area	According to final plan

These sizes are planning suggestions, not fixed measurements. The final first floor plan needs to match the walls and columns below it. The position of bathrooms, stairs and service areas also needs proper planning so the plumbing lines stay simple and easy to maintain.

Front Terrace and Open Space

The front terrace can give the first floor a more open feel. It can be used for a small seating area, plants or evening family time.

For a Lahore house, open space also needs to be planned with sunlight, privacy and airflow in mind. Windows and terrace openings should be placed carefully so rooms get natural light without losing privacy.

The final terrace size will depend on the plot dimensions, setbacks and the approved building plan. We don’t recommend filling every available part of the first floor with rooms. Keeping some useful open space can make the house feel larger and more comfortable.

7 Marla Double Story House Design

A double story house is a practical choice for a 7 Marla plot when you need more rooms without using all the space on one floor. The two floors can be planned for different needs, so the house stays comfortable for both daily family life and guests.

Ground and First Floor Combined Plan

For a four bedroom layout, the ground floor can have two bedrooms along with the main family areas. The first floor can then provide two more bedrooms, a family lounge and useful open space.

The ground floor can be arranged with:

1. Two bedrooms

2. Drawing room

3. TV lounge

4. Main kitchen

5. Dirty kitchen

6. Attached bathrooms

7. Powder room

8. Car porch

9. Staircase

10. The first floor can be arranged with:

11. Two bedrooms

12. Attached bathrooms

13. Family lounge

14. Small kitchen or kitchenette

15. Front terrace

16. Open sitting area

17. Laundry space

This setup works well for families who want bedrooms on both floors. Parents can use the ground floor bedroom while children or guests can use the first floor. It also gives the family more privacy when guests are visiting.

Four Bedroom Option

A four bedroom 7 Marla house plan can give each family member a proper private room while keeping the main living areas separate.

Two bedrooms can be kept on the ground floor and two on the first floor. The master bedroom can have a slightly larger size and a comfortable attached bathroom. The first floor can also have a family lounge where family members can sit without using the main TV lounge downstairs.

Bathroom Planning

A four bedroom house can have four attached bathrooms, with an extra powder room for guests.

A practical setup can be:

1. Four attached bathrooms

2. One powder room

The final number depends on the layout and the family’s needs. Bathroom positions should also be planned carefully so the plumbing lines stay short and easy to maintain.

Kitchen Planning

The main kitchen can be placed on the ground floor near the TV lounge and dining area. A separate dirty kitchen can be added for heavy cooking and washing.

On the first floor, a small kitchenette is optional. It can be useful if the upper floor is used as a separate family space. If it’s not needed, the same area can be used for storage, laundry or extra lounge space.

Parking for a 7 Marla House

Parking needs to be planned with the plot frontage in mind. A wider front can make it easier to fit two cars, while a narrower frontage may work better with one comfortable car porch.

For most plans, the porch should allow the car to enter and leave without blocking the main entrance. The gate, porch columns and staircase position should all be checked together before the final drawing is approved.

The final parking size will depend on the actual plot dimensions, road position and housing society rules. We don’t recommend reducing the porch too much just to gain a little extra indoor space because easy parking is important for daily use.

7 Marla 3 Bedroom House Plan

A 3 bedroom house plan can be a better choice when you want bigger rooms and more open space on a 7 Marla plot. Instead of adding more bedrooms, the plan gives more area to the rooms your family uses every day.

Ground Floor

The ground floor can have one large master bedroom with an attached bathroom. The drawing room can stay near the entrance, while the TV lounge can be placed deeper inside for family use.

A practical ground floor layout can include:

1. One master bedroom

2. Attached bathroom

3. Drawing room

4. TV lounge

5. Main kitchen

6. Car porch

7. Staircase

8. Powder room

This arrangement keeps the guest area separate from the private family space. The master bedroom on the ground floor is also useful for parents or anyone who doesn’t want to use the stairs every day.

First Floor

The first floor can have two bedrooms with attached bathrooms. A family lounge can sit between the bedrooms and give the family a private sitting area.

The front terrace can be kept open for seating, plants or simple outdoor use. Part of the terrace can also be used for drying clothes or other household needs, depending on the final layout.

A practical first floor can include:

1. Two bedrooms

2. Attached bathrooms

3. Family lounge

4. Front terrace

5. Open sitting area

6. Laundry space

The staircase should connect both floors without taking too much useful room. Its position should be fixed early in the design because it affects the flow of the whole house.

Best for Families Who Want More Space

A 3 bedroom 7 Marla house design is a good option for a small or medium sized family that doesn’t need four bedrooms.

The main benefit is extra space. Bedrooms can be made more comfortable, the TV lounge can have better movement, and the terrace can remain more open. You also have more freedom to add storage, a larger kitchen or better bathroom space.

For a family in Lahore, this type of plan can also work well when the house is planned for long term living rather than trying to fit the highest possible number of rooms.

If your family needs fewer bedrooms but wants a more open and comfortable home, this 3 bedroom layout can be a strong option for a 7 Marla plot.

7 Marla 4 Bedroom House Plan

A 4 bedroom plan is useful for a family that needs an extra room for children, parents or guests. On a 7 Marla plot, the best approach is to divide the bedrooms between both floors instead of making the ground floor too crowded.

Ground Floor

Two bedrooms can be planned on the ground floor. This gives easy access to the rooms and works well for parents, older family members or guests.

The ground floor can have:

1. Two bedrooms

2. Attached bathrooms

3. Drawing room

4. TV lounge

5. Kitchen

6. Car porch

7. Staircase

8. Powder room

The bedrooms should have enough space for a bed, wardrobe and normal walking area. Their windows should also be placed where they can get daylight and fresh air.

First Floor

The other two bedrooms can be placed on the first floor. This gives children or other family members their own private space away from the main living area.

The first floor can also include a family lounge and open terrace. The lounge can be used for study, family sitting or daily activities without disturbing the rooms downstairs.

A practical upper floor can include:

1. Two bedrooms

2. Attached bathrooms

3. Family lounge

4. Front terrace

5. Laundry space

6. Open sitting area

Space Distribution

The main difference between a 3 bedroom and 4 bedroom house is how much space is given to each room. A 4 bedroom plan gives you one more private room, but some other areas may need to be kept smaller.

Feature	3 Bedroom	4 Bedroom
Bedrooms	3	4
Room Size	Usually larger	Usually moderate
Lounge	More open	More compact
Terrace	More open space	Less open space
Family Size	Small or medium	Medium or large

For a 7 Marla house in Lahore, we usually look at the family’s actual needs before choosing between these two layouts. If you have three bedrooms that are enough for your family, keeping fewer rooms can give you a more open house. If you need a separate room for guests, children or parents, the 4 bedroom plan can make better use of the two floors.

The key is not to add a fourth bedroom by making every other space too small. A good house plan should still leave enough room for comfortable furniture, movement, daylight and ventilation.

7 Marla Single Story House Design

A single story house can be a good choice for families who want everything on one floor. There are no daily stairs to use, and the rooms can be planned around one main family living area.

On a 7 Marla plot, the main challenge is fitting all the required rooms while keeping enough open space for light, air and easy movement. The final plan should give priority to the spaces your family uses most.

3 Bedroom Single Story Plan

A 3 bedroom layout gives more room to each part of the house. It can work well for a small or medium sized family that doesn’t need an extra bedroom.

A practical plan can include:

1. Three bedrooms

2. Three attached bathrooms

3. Drawing room

4. TV lounge

5. Main kitchen

6. Dirty kitchen

7. Car porch

8. Powder room

9. Laundry area

The three bedrooms can be placed around the family lounge so everyone has easy access to the main living space. The drawing room should stay close to the entrance, which helps keep guest movement separate from the private areas of the house.

A separate dirty kitchen can be useful for heavy cooking and washing. It can also help keep the main kitchen cleaner during daily use.

4 Bedroom Single Story Plan

A 4 bedroom single story house needs more careful space planning. Four bedrooms can be fitted on a 7 Marla plot, but the rooms and common areas will usually need to be more compact than a 3 bedroom layout.

A possible arrangement can include:

1. Four bedrooms

2. Attached bathrooms

3. Drawing room

4. TV lounge

5. Kitchen

6. Dirty kitchen

7. Car porch

8. Powder room

9. Laundry area

The bedrooms can be placed around the central living areas, with the master bedroom given a little more space. The other bedrooms can be planned for children, parents or guests.

With four bedrooms on one floor, the designer needs to control the size of passages and unused corners. This helps keep more usable space inside the bedrooms and lounge.

Covered Area

The covered area of a 7 Marla single story house isn’t always the same. It depends on the plot dimensions, required setbacks, parking space, open areas and the building rules of the housing society.

For example, a 7 Marla plot with a larger front setback will have less covered space than a similar plot where the approved building area is greater.

A simple way to work out the construction area is:

Total covered area = all enclosed rooms and built spaces on the floor

The car porch, open courtyard and open terrace areas should not simply be added to the covered area unless they are actually covered as part of the approved design.

For the final house plan, we calculate the covered area from the actual architectural drawing. This gives a much better base for estimating the construction cost than using a fixed covered area for every 7 Marla plot.

If your priority is larger bedrooms and a more open lounge, the 3 bedroom option can give you more freedom. If your family needs four private rooms, the 4 bedroom option can work, but the space needs to be planned carefully from the start.

7 Marla House Covered Area

A 7 Marla house ka covered area plot ke full size ke barabar nahi hota. Lahore mein 7 Marla ka common plot size 1,575 sq ft hota hai, lekin house ki actual covered area setbacks, society rules, parking, open spaces aur house design par depend karti hai.

For example, a common 7 Marla plot can be 30 × 52.5 ft, which gives 1,575 sq ft of plot area. LDA rules for certain residential areas require open space at the front and rear for plots from 5 Marla up to less than 10 Marla. However, approved housing societies can have their own rules, so the final building area should always be checked before starting the design.

1. Ground Floor Covered Area

Approximately 1,200 sq ft

For a practical 7 Marla double story house design, around 1,200 sq ft on the ground floor is a useful planning figure. A published 7 Marla house example also uses 1,200 sq ft for the ground floor.

This space can be planned for the car porch, drawing room, TV lounge, bedrooms, kitchen, bathrooms, staircase and other required areas. The final covered area can be higher or lower depending on the plot shape and the open space kept in the plan.

2. First Floor Covered Area

Approximately 1,200 sq ft

A similar 1,200 sq ft first floor can work well when the design needs more bedrooms, a family lounge and terrace space. A published 7 Marla example uses 1,200 sq ft on the first floor as well.

The first floor doesn’t need to copy the ground floor. We can reduce the built area in some places and use the extra space for a front terrace, open sitting area or better light and air.

3. Total Covered Area

Approximately 2,500 sq ft including a 100 sq ft mumty

One published 7 Marla double story example gives a total covered area of 2,500 sq ft, made up of 1,200 sq ft ground floor, 1,200 sq ft first floor and 100 sq ft mumty.

For Lahore house construction, you may also see 7 Marla double story designs in the 2,600 to 3,000 sq ft range. This difference is normal because every plan uses different setbacks, terraces, stairs, porch areas and mumty sizes.

So, don’t use 2,500 sq ft or 3,000 sq ft as a fixed rule for every 7 Marla house. Your architect should calculate the covered area from your actual plot and approved drawing.

4. Open Area

The part of the plot that isn’t counted as covered area can be used for:

1. Front setback

2. Car porch or open parking

3. Front garden or sitting space

4. Terrace

5. Courtyard or open to sky area

6. Rear open space

7. Ventilation and light areas

The important point is that plot area and covered area are two different things. A 1,575 sq ft plot doesn’t mean you should build 1,575 sq ft on every floor.

For a 7 Marla house design in Lahore, we first check the plot dimensions and society bylaws. Then we set the required open spaces and plan the rooms around them. This gives a more useful covered area figure and helps avoid changes during construction.

If you’re planning a 7 Marla house construction in Lahore, ask for the total covered area in square feet before comparing construction quotes. The same per sq ft rate can give very different total budgets if the covered area is different.

7 Marla House Front Elevation Designs

A 7 Marla house ka front sirf achha dikhna nahi chahiye. It should also match the house plan, road side, windows, balcony and parking space. Lahore mein modern houses mein clean lines, large windows, simple walls and warm lighting ka use kaafi common hai.

The right front elevation also depends on your house size and floor plan. A double story house gives more room for height, balconies and larger windows. A single story house usually looks better with a simple and balanced front.

1. Modern 7 Marla Front Elevation

A modern 7 Marla front elevation usually has clean lines and simple shapes. Too many design details can make a small front look busy.

We can use large windows, a simple main gate, light paint and a small amount of wall cladding. Warm lights can also make the front look better at night.

1. Exterior material: Paint with stone or tile cladding
2. Windows: Large simple windows with dark frames
3. Main gate: Modern metal gate with a clean design
4. Balcony: Simple glass or metal railing
5. Lighting: Warm wall lights and ceiling lights
6. Cladding: Used on selected wall areas
7. Paint finish: Light shades with one darker accent

2. Contemporary 7 Marla Elevation

A contemporary elevation gives the house a fresh and neat look. It often mixes different wall textures, glass, wood style panels and simple box shapes.

This style works well for Lahore homes where the front needs to look modern without using too many costly materials.

1. Exterior material: Paint, tiles and wood style panels
2. Windows: Wide windows for more natural light
3. Main gate: Simple solid or slatted gate
4. Balcony: Glass or simple metal railing
5. Lighting: Small spotlights and wall lights
6. Cladding: Stone or textured tiles on feature walls
7. Paint finish: Two or three matching shades

3. Simple 7 Marla House Front

A simple front elevation is a good choice if you want a clean house without a high design cost. The focus stays on good proportions, proper windows and a neat entrance.

We can keep the walls simple and use one feature area near the entrance. This also makes future maintenance easier.

1. Exterior material: Good quality exterior paint
2. Windows: Standard size windows with simple frames
3. Main gate: Strong metal gate with a plain design
4. Balcony: Simple railing where needed
5. Lighting: Basic wall and entrance lights
6. Cladding: Limited use around the main entrance
7. Paint finish: One main colour with a small accent

4. Luxury 7 Marla Elevation

A luxury 7 Marla elevation doesn’t have to mean covering the whole front with expensive material. Good design, proper lighting and balanced materials can give a premium look.

Stone, large windows, wood style panels and glass can be used in selected areas. The key is to keep the design balanced with the actual size of the house.

1. Exterior material: Stone, tiles, glass and premium paint
2. Windows: Large aluminium windows
3. Main gate: Custom designed metal gate
4. Balcony: Glass or modern metal railing
5. Lighting: Layered wall and ceiling lighting
6. Cladding: Stone or premium tiles on key areas
7. Paint finish: Soft neutral shades with darker accents

5. Double Story Front Elevation

A double story 7 Marla house gives more space to work with on the front. The first floor can include a balcony, large bedroom windows or a small terrace.

The front elevation should match the floor plan. Windows shouldn’t be added only for looks. Their position should also work with bedrooms, lounges and natural light inside the house.

1. Exterior material: Paint, tiles, stone or wood style panels
2. Windows: Large windows placed according to the rooms
3. Main gate: Wide gate planned with the car porch
4. Balcony: Designed with the first floor layout
5. Lighting: Wall lights and focused feature lighting
6. Cladding: Used on selected front sections
7. Paint finish: Matching colours across both floors

6. Choosing the Right 7 Marla Front Elevation

Before selecting a front design, check the actual plot width, road side, parking space and floor plan. A design that looks good on a wide plot may not look the same on a narrow frontage.

It’s also important to plan the exterior materials with the construction budget. You don’t need expensive cladding on every wall. A well planned mix of paint, tiles, lighting and one feature wall can give a strong result.

For a 7 Marla house design in Lahore, the best front elevation is one that looks good, gives enough light and ventilation, provides proper privacy and works with the way the house will actually be used.

7 Marla House Interior Design

A good 7 Marla house interior starts with the floor plan. Furniture, doors, windows, stairs and storage should all have enough space to work properly. We’re not just filling rooms with furniture. We’re planning each space so the family can use it comfortably every day.

1. Drawing Room

The drawing room is usually placed near the main entrance. This makes it easy for guests to enter without walking through the private parts of the house.

Keep the main sofa facing the TV wall or feature wall. Leave enough space around the furniture so people can move easily. The entrance door should also open without hitting a sofa or table.

For a 7 Marla house, a simple sofa set, centre table and TV or feature wall can give the room a clean look. Built in storage can also be added if the space allows it.

2. TV Lounge

The TV lounge is the main family sitting area, so comfort matters more than decoration.

The sofa should face the TV wall with enough distance for comfortable viewing. Don’t place furniture in the main walking path between the kitchen, bedrooms and staircase.

A simple TV wall with a small storage unit can keep the room neat. Good window placement is also important because natural light can make the lounge feel more open during the day.

3. Master Bedroom

The master bedroom should have enough space for the bed, side tables, wardrobes and movement around the room.

A common layout is to place the bed against the main wall and keep the wardrobe on another wall. The attached bathroom should be easy to reach but shouldn’t open directly toward the main bed area where possible.

For a 7 Marla house design in Lahore, built in wardrobes can be a better choice when floor space is limited. They use wall space without taking too much room from the walking area.

4. Kitchen

A kitchen needs careful planning because several things are used at the same time.

The counter should have enough space for food preparation. Cabinets can be planned above and below the counter. The fridge should be placed where it can be reached easily without blocking the cooking area.

A practical kitchen can include:

1. Cooking area

2. Sink

3. Work counter

4. Upper cabinets

5. Lower cabinets

6. Fridge space

7. Storage for daily items

If the house has a dirty kitchen, heavy cooking can be moved there. This can help keep the main kitchen cleaner, especially when guests are at home.

5. Staircase

The staircase should be planned as part of the house structure, not added at the end.

Its position should provide easy access to the first floor without taking too much useful space from the lounge or rooms. The area under the stairs can also be used for storage, a small wash area or other useful space where the design allows it.

The final stair size, steps and slope should follow the approved architectural and structural drawings. A good staircase should feel safe and comfortable to use every day.

6. Bathrooms

Bathrooms should be easy to clean and simple to use.

A basic modern bathroom can include a shower area, toilet, vanity and mirror. The shower area can be separated with a glass screen or a simple floor level change where suitable.

Good ventilation is important in Lahore’s homes. Windows or exhaust systems should be planned early so moisture doesn’t stay inside the bathroom.

The location of the toilet, shower and vanity should also be planned with the plumbing lines. This can reduce unnecessary pipe runs and make future maintenance easier.

7 Marla House Structural Design

A good house plan is only one part of construction. The structure underneath it is what carries the weight of the building.

For a 7 Marla house, the foundation, columns, beams and slabs should be designed according to the actual site and the number of floors planned. We don’t recommend copying a structural drawing from another house because soil, plot conditions, loads and building layouts can be different.

1. Foundation Layout

The foundation is the base of the house. It transfers the building load safely into the soil.

Before finalising the foundation design, the structural engineer should consider the soil condition, planned floors, column positions and building loads.

The foundation drawing can show:

1. Soil condition

2. Foundation type

3. Footing positions

4. Foundation depth

5. Column starting points

6. Reinforcement details

The exact foundation design should come from a qualified structural engineer after checking the site and required loads. A standard depth or footing size shouldn’t be used for every 7 Marla house.

2. Column Layout

Columns carry the load from the beams and upper floors down toward the foundation.

Their position should be planned with the house layout. Columns shouldn’t be placed randomly because they can affect room size, doors, windows, parking and furniture placement.

For the final project, the structural drawing should clearly show the column grid and column positions.

This helps the construction team know where each column starts and how it connects with the rest of the structure.

3. Beam Layout

Beams connect the columns and help carry the load of the slab and upper floor.

A proper beam plan should match the column layout and architectural plan. If a beam is placed without checking the room layout, it can create problems with ceilings, doors or future changes.

The final drawing should clearly show the beam plan, including beam positions and required structural details.

4. Slab Design

The slab forms the floor and roof surface of the house. Its design depends on the room layout, span, loads and structural system being used.

The basic construction flow is:

1. Ground Floor

2. Columns

3. Beams

4. Slab

5. First Floor

The slab should be designed together with the columns and beams. Reinforcement, slab thickness and other details should come from the structural drawings instead of using one fixed size for every house.

5. Staircase Structure

The staircase connects the ground floor with the first floor, but it also forms part of the building structure.

Its location should match the architectural plan and its support should match the structural design. The engineer needs to check the stair span, load and connection with the surrounding structure.

The final staircase drawing should show the steps, landing, supporting members and reinforcement details where required.

For a 7 Marla house, good structural planning helps us use the available space better. It also gives the site team a clear drawing to follow before concrete and steel work starts.

7 Marla House Architecture Plan

A proper 7 Marla house architecture plan sirf floor plan nahi hota. Construction start karne se pehle architect ko ghar ki different drawings prepare karni hoti hain. Har drawing ka apna kaam hota hai.

These drawings help the client, architect and construction team stay on the same plan. They also make it easier to check room sizes, doors, windows, stairs, electrical points, plumbing and exterior design before work starts.

1. Site Plan

The site plan shows your plot and how the house will sit on it.

It can show the plot size, road side, entrance, car porch, building area, open spaces and other important points. For a 7 Marla house in Lahore, this drawing should be made according to the actual plot measurements and the rules of the housing society.

This is one of the first drawings we check before moving to the detailed house plan.

2. Ground Floor Plan

The ground floor plan shows the complete layout of the lower floor.

It shows rooms, walls, doors, windows, bathrooms, kitchen, stairs, porch and other spaces. Room sizes and their positions are also marked on the drawing.

For a 7 Marla house design, this plan helps you see how the available space will be used before bricks and concrete work start.

3. First Floor Plan

The first floor plan shows how the upper floor will be arranged.

Depending on the family needs, it can include bedrooms, attached bathrooms, family lounge, terrace, laundry area and other spaces.

The first floor should also work with the ground floor structure. Column and wall positions need to be checked before finalising the plan.

4. Roof Plan

The roof plan shows what is planned above the first floor.

It can include the mumty, staircase headroom, water tank area, roof access and open terrace areas. Rainwater drainage and other roof details can also be planned here.

A proper roof plan helps prevent problems with water flow and roof use later.

5. Front Elevation

The front elevation shows how the house will look from the road.

It covers the front door, windows, balcony, boundary wall, main gate, exterior finishes and lighting areas. Materials such as tiles, stone or wood style panels can also be marked.

This is where the selected 7 Marla house front elevation becomes a clear construction drawing instead of just a 3D picture.

6. Side Elevation

The side elevation shows the house from the side.

It helps check the height of walls, windows, floor levels and other outside details. It can also show how the house connects with the ground and roof levels.

This drawing is useful when the plot has a side street or an open side.

7. Section Drawing

A section drawing cuts through the house to show its height and internal levels.

It can show the floor height, ceiling level, staircase, slab, roof and other parts from the side. This gives the construction team a better idea of vertical measurements that can’t be understood from a normal floor plan.

8. Electrical Plan

The electrical plan shows where electrical points will be placed.

It can include lights, fans, switches, sockets, TV points, AC points and other required connections.

Planning these points before construction is important. It means we don’t have to break finished walls later just to add a missing socket or switch.

9. Plumbing Plan

The plumbing plan shows the water supply and waste pipe layout.

It covers bathrooms, kitchen, floor drains, water lines and waste lines. The location of plumbing points should match the bathroom and kitchen layout.

Good planning here can make future repair work easier and can also reduce unnecessary pipe work.

10. Ceiling Plan

The ceiling plan shows the design and levels of the ceilings.

It can mark false ceiling areas, lights, fans, AC points and other ceiling details. The design should match the room size and furniture layout.

For a 7 Marla house, simple ceiling work can often give a clean look without making smaller rooms feel crowded.

11. Door and Window Schedule

The door and window schedule gives details about the doors and windows used in the house.

It can include the opening size, type, location and quantity. This gives the contractor and fabricator a clear reference when ordering and installing them.

It also helps the client check that the same sizes are being followed across the house.

12. What You Should Receive From Your Architect

Before starting construction, ask for a complete drawing set rather than only a 2D floor plan.

For a 7 Marla house, the architectural package should normally cover:

1. Site plan

2. Ground floor plan

3. First floor plan

4. Roof plan

5. Front elevation

6. Side elevation

7. Section drawing

8. Electrical plan

9. Plumbing plan

10. Ceiling plan

11. Door and window schedule

The exact drawing package can change according to the project. A house with more detailed interior work or a more complex structure may need additional drawings.

At Highland Properties and Construction, these drawings can be used as the working base for construction planning. The important thing is that the architectural drawings, structural drawings and services plans should match before site work moves ahead.

A good drawing set saves time because the team knows what to build, where to build it and what details need to be followed.

7 Marla House Architect Fee in Lahore

The architect fee for a 7 Marla house depends on the type of design work you need. A simple 2D floor plan costs less than a complete design package with 3D elevation, working drawings, electrical, plumbing and structural plans.

In Lahore, 2026 architect fees can vary from one professional to another. A current Lahore market guide places 7 Marla house design packages around PKR 1.2 lakh to PKR 4 lakh, depending on the design level and services included.

Service	Estimated Fee
2D Floor Plan	PKR 30,000 to 60,000
Complete Architectural Design	PKR 1.2 to 1.8 lakh
3D Front Elevation	PKR 25,000 to 60,000
Complete Drawing Set	PKR 1.8 to 2.8 lakh
Architecture and Structure	PKR 2 to 3 lakh
Complete Design Package	PKR 2.8 to 4 lakh

These are estimated Lahore market prices for planning. The final fee can change based on the architect, design style, number of revisions, 3D views, structural drawings and approval work.

Before hiring an architect, ask what is included in the fee. A low price may cover only a floor plan, while another package may include the complete working drawings.

For a proper 7 Marla house architecture plan, it’s better to confirm the complete drawing list before construction starts.

7 Marla House Construction Cost in Lahore

The construction cost of a 7 Marla house in Lahore depends on the covered area, number of floors, material quality and level of finishing.

A current 2026 Lahore estimate for a double story 7 Marla house uses around 2,750 sq ft of covered area. Based on this example, the grey structure costs about PKR 85.95 lakh to PKR 1.01 crore, while complete standard construction costs around PKR 1.45 crore to PKR 1.71 crore.

Grey Structure Cost

Grey structure includes the main construction work before the final finishing. This includes foundation, columns, beams, brickwork, slabs and other basic building work.

Current Lahore 2026 construction guides place grey structure rates around PKR 2,800 to PKR 3,600 per sq ft, depending on material quality and the contractor.

For a 2,750 sq ft example, the grey structure budget can be around PKR 86 lakh to PKR 1.01 crore.

Work	Estimated Cost
Foundation and Excavation	PKR 10 to 13 lakh
Brickwork	PKR 12 to 15 lakh
Cement	PKR 14 to 18 lakh
Steel	PKR 16 to 19 lakh
Sand	PKR 4 to 6 lakh
Crush	PKR 3 to 5 lakh
Roofing and Slabs	PKR 8 to 11 lakh
Grey Structure Labour	PKR 8 to 11 lakh
Estimated Grey Structure Total	PKR 86 lakh to 1.01 crore

These figures are for budget planning only. They shouldn’t be treated as a final BOQ because the actual quantity of each material depends on the structural drawings and house plan.

For the 2,750 sq ft example, the estimated material use includes around 88,000 bricks, 1,155 cement bags and 6,188 kg of Grade 60 steel.

Material prices can change during construction. Cement, steel, bricks, sand and crush should be checked again when you’re ready to purchase them.

Complete Turnkey Construction Cost

Turnkey construction takes the house from the grey structure stage to a ready to use home.

It can include flooring, tiles, paint, electrical work, plumbing, doors, windows, kitchen, bathroom fittings, ceiling work and woodwork. The exact scope depends on the contractor and the package you choose.

Current Lahore 2026 construction guides show standard turnkey rates around PKR 5,800 to PKR 8,500 per sq ft, depending on the finish level and materials.

For a 2,750 sq ft example, a current Lahore estimate gives a complete standard construction budget of around PKR 1.45 crore to PKR 1.71 crore.

Category	Estimated Cost
Grey Structure	PKR 86 lakh to 1.01 crore
Electrical Work	PKR 8 to 11 lakh
Plumbing Work	PKR 6 to 9 lakh
Flooring and Tiles	PKR 9 to 14 lakh
Doors	PKR 5 to 8 lakh
Windows and Aluminium	PKR 3 to 5 lakh
Kitchen	PKR 5 to 9 lakh
Bathroom Fixtures	PKR 4 to 6 lakh
Paint and Ceiling Work	PKR 6 to 9 lakh
Woodwork and Cabinets	PKR 5 to 8 lakh
Complete Turnkey Budget	About PKR 1.45 to 1.71 crore

These figures are for planning. Your final cost can be lower or higher depending on the brands, tile selection, sanitary fittings, kitchen quality, woodwork, electrical items and other finishing choices.

7 Marla House Construction Cost Per Sq Ft

For Lahore in 2026, the following range can be used as a starting point for budget planning.

Construction Type	Lahore Rate Per Sq Ft
Economy Grey Structure	PKR 2,800 to 3,000
Standard Grey Structure	PKR 3,000 to 3,300
Premium Grey Structure	PKR 3,400 to 3,600
Economy Turnkey	PKR 5,500 to 6,500
Standard Turnkey	PKR 6,500 to 7,500
Premium Turnkey	PKR 8,000 to 9,500

These rates can change as material and labour prices change.

For example, if your approved covered area is 2,750 sq ft and the construction rate is PKR 7,000 per sq ft:

2,750 sq ft × PKR 7,000 = PKR 1.925 crore

This simple calculation shows why the covered area should be confirmed before comparing construction quotes.

What Can Change Your Final Construction Budget?

Two 7 Marla houses in Lahore can have very different construction costs even when the plot size is the same.

The main factors include:

1. Material quality

2. Covered area

3. Number of floors

4. Foundation requirements

5. Structural design

6. Tile selection

7. Kitchen quality

8. Bathroom fittings

9. Doors and windows

10. Electrical brands

11. Woodwork

12. False ceiling

13. Exterior elevation

14. Society location

15. Labour rates

A house using standard local materials will cost less than a house with imported tiles, premium sanitary fittings, custom kitchen work and high quality woodwork.

That’s why you shouldn’t choose a contractor only because they offer the lowest per sq ft rate. Ask for the covered area, material brands, quantities and complete work scope in writing.

For 7 Marla house construction in Lahore, the best way to control your budget is to finalise the house plan first, calculate the actual covered area, prepare the material quantities and then compare detailed construction quotes.

Conclusion

A good 7 Marla house design in Lahore starts with proper planning. The plot size, road side, society rules and family needs should be checked before the final plan is made.

There isn’t one house plan that will work for every 7 Marla plot. Some families need three large bedrooms, while others want four bedrooms with a more compact layout. The covered area can also change based on setbacks, parking, terrace and open spaces.

Your construction budget should be based on the actual covered area and the finish level you choose. It’s also important to check the material brands and work included in the contractor’s quotation.

At Highland Properties and Construction, we can help you plan the architectural design, structural work and construction of your 7 Marla house in Lahore. The goal is to make the plan practical before construction starts, so you know what you’re building and where your money is going.

FAQs About 7 Marla House Design in Lahore
